Myth two conic implant

Myth two conic implant

The Myth two device has an external cylindrical diameter while the body diameter has a 4° conicity on the top. The special conical shape of the device Myth two enables the surgeon to insert the device with a low

load torque which gradually increases towards the end of the insertion phase.

Spires for the conic device two

The profile of the Myth two conic shape is ideal for immediate load. The external diameter of the device is the same for its whole length while the diameter of the body of the device differs; on the top there is a 4° conicity. The pitch of the conical shape is 1mm and is the same for every Myth two systems.


  • Diameter 3.25 mm:: Length: 8.5 mm Code MC385 Length: 10 mm Code MC310

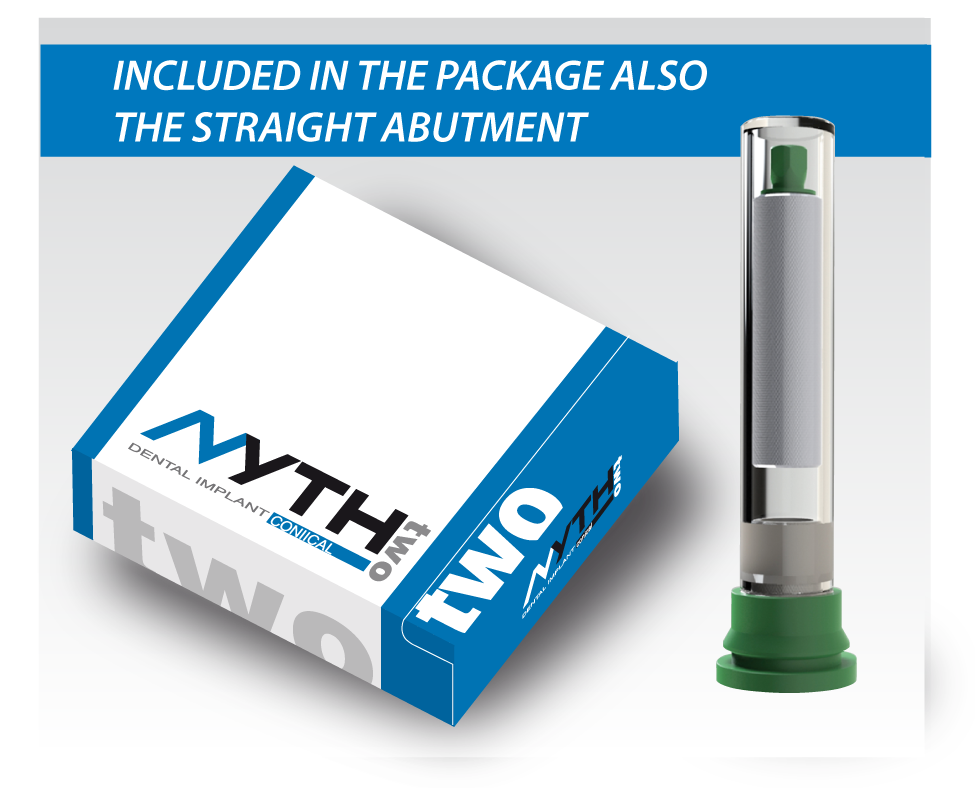

Packaging included in the package also the straight abutment

The special Myth® packaging includes a blister, aplastic vial, a titanium protection and a cover screw. The “primary container” blister is hermetically sealedthrough thermo soldering while the “secondary container” vial is hermetically sealed through twomedical silicon caps. The cover screw is in the cap, external to the vial and to be removed it is screwedoff. In the packaging, the device is found a titanium protective cylinder that prevents the devicesurface from possible polluting contaminant particles. On the packaging there is the name ofthe item that identifies the kind of device, whether it is conical or cylindrical and a labeling that providesinformation about the size of the diameter, the length, the batch number, the date of manufacturingand the date of sterilization expiration date.

Myth® is made of titanium grade 4. Titanium has a relativedensity of 4,5 g/cm3 and a very low thermal conductivity. It ischaracterized by a very high strength of materials and theelongation at break at 12%. The elastic modulus is relativelylow and similar to that of bones. Titanium grade 4 has the best global characteristics of all the pure titanium varieties (grades)combining the workability and, consequently, precision typicalof low degrees, with the higher degrees superior to mechanicalfeatures. The most important characteristics of this metal arethe high corrosion resistance and the high biocompatibility.
